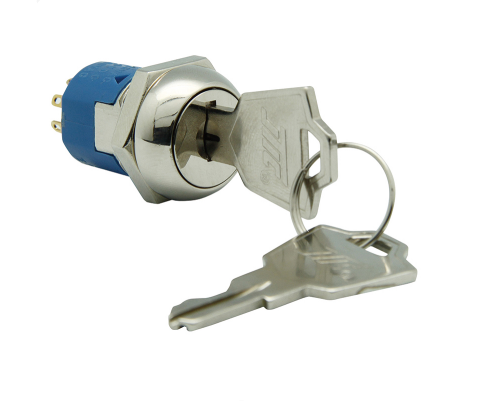

S2011两档UL钥匙开关
详细介绍
商品介绍
产品名称 UL电源锁
产品型号 S2011
产品说明：
. 锌合金锁壳, 锁心, 吊镍电镀
. 4个排片
. 双边铣齿铜钥匙, 镀镍
. 钥匙抽出位置多种
. 镀金接点及端子

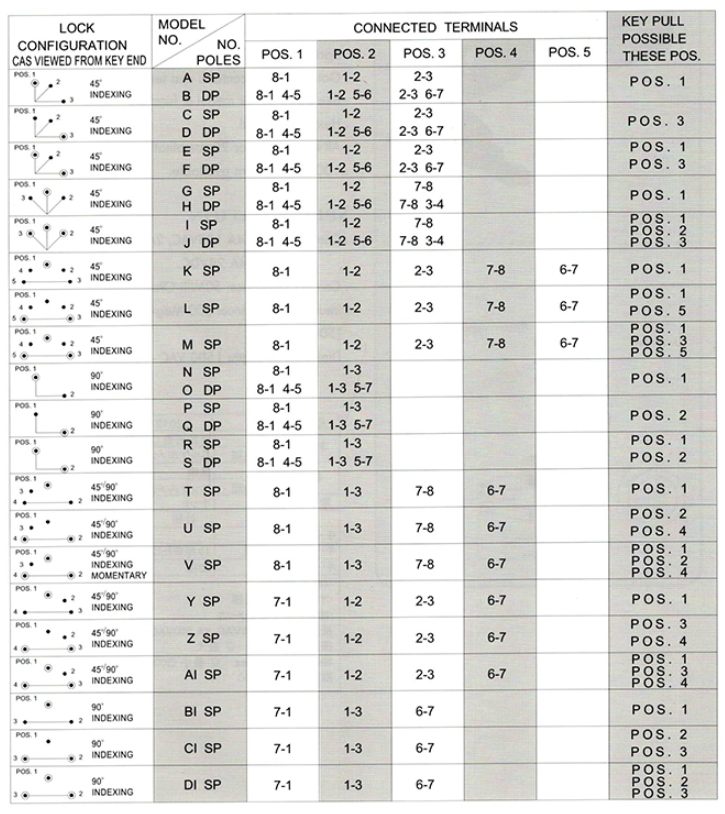

. 通电方式参考附件
. 锁头固定方式为六角螺母或插片
. 规格品为同号或20组钥匙组合
. 最多有20组钥匙组合
. UL认证
Introduction
No. S2011
Product Name S2011
Description
S2011 series
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.
Various key withdrawals available.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
19mm钥匙开关 UL电源锁
产品名称 UL电源锁
产品型号 S2011
产品说明：
. 锌合金锁壳, 锁心, 吊镍电镀
. 4个排片
. 双边铣齿铜钥匙, 镀镍
. 钥匙抽出位置多种
. 镀金接点及端子
. 通电方式参考附件
. 锁头固定方式为六角螺母或插片
. 规格品为同号或20组钥匙组合
. 最多有20组钥匙组合
. UL认证
Introduction
No. S2011
Product Name S2011
Description
S2011 series
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.
Various key withdrawals available.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
