圆孔钥匙开关 三脚钥匙开关
详细介绍

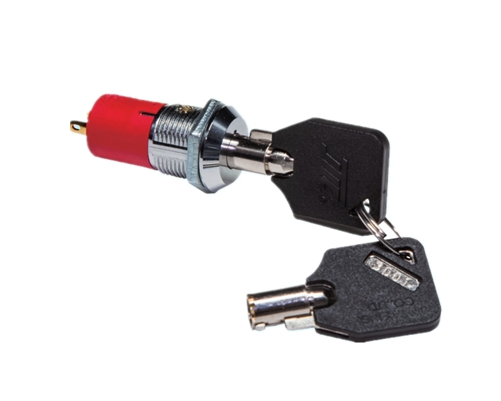

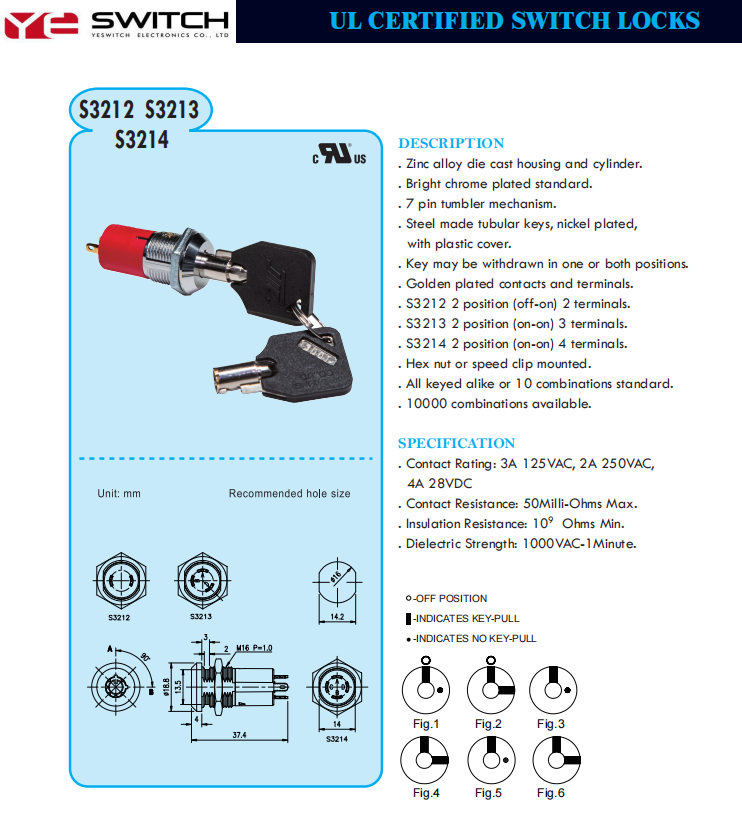

DESCRIPTION
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. 7 pin tumbler mechanism.
. Steel made tubular keys, nickel plated,
with plastic cover.
. Key may be withdrawn in one or both positions.
. Golden plated contacts and terminals.

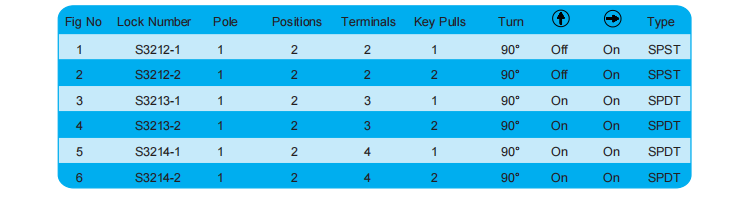

. S3212 2 position (off-on) 2 terminals.
. S3213 2 position (on-on) 3 terminals.
. S3214 2 position (on-on) 4 terminals.
. Hex nut or speed clip mounted.
. All keyed alike or 10 combinations standard.
. 10000 combinations available.
SPECIFICATION
. Contact Rating: 3A 125VAC, 2A 250VAC,
4A 28VDC
. Contact Resistance: 50Milli-Ohms Max.
. Insulation Resistance: 109 Ohms Min.
. Dielectric Strength: 1000VAC-1Minute.
o-INDICATES KEY-PULL
-OFF POSITION
●-INDICATES NO KEY-PULL
