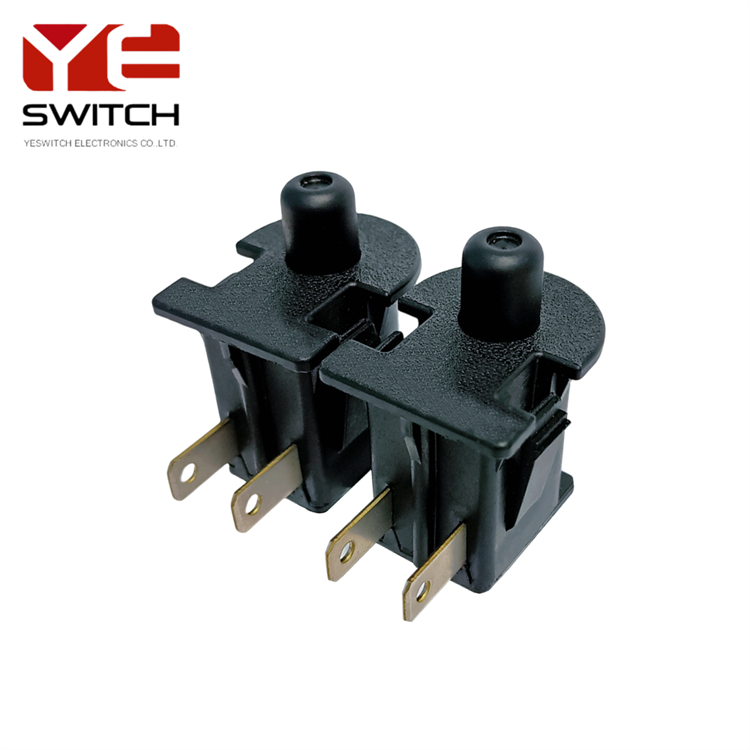

常开座椅开关 割草机开关 2pin
详细介绍
汽车座椅开关,常开座椅开关,割草机座椅开关,座椅开关 复位座椅开关,常开常闭座椅开关，园林机械设备座椅开关
兼容:430-413常开 2pin 座椅开关
替换件号,适用于:
兼容Bush Hog 50048610.
兼容Delta 6440-04、
兼容Dixie chopper 902602
兼容Dixon 539107523、
兼容Gravely 02754100
YESWITCH seat switches are easy to integrate into your application and ruggedly designed to last, equipped with self-cleaning contacts that extend switch life in tough environments where moisture and dirt are constant irritants.
The seat switch adopts a reset normally open design,which can ensure that every time you press the push button switch,it can automatically reset to the initial state,so as to facilitate your use.Moreover,this design can effectively prevent misoperation and ensure your safety.The seat push button switch types use a snap-in mounting design.This design makes installation and disassembly very easy and quick,and does not require any tools to complete.
The 3A 18VDC high current unsealed plunger seat switch has excellent performance to meet your needs for high-quality switches.The plunger switch biggest feature is high life and stability. After testing, the seat switch can withstand up to 75,000 cycles,and there are no problems during prolonged use. This makes it a very reliable option that can be used with confidence.
When a seated operator compresses the seat foam, the switch is actuated.Typical applications include construction equipment,material handling equipment, outdoor power equipment, forklifts,mowers,rental equipment,agricultural equipment,ATVs,UTVs and other applications where operator presence detection is necessary.
SPECIFICATIONS
Maximum Voltage:24 VDC 5A
Contact Resistance @ Max Current:83.3mΩ
Cycle Life @ Max Load:Inductive 10,000, Resistive 75,000
Ingress Protection:IP54
Operating Temperature:-28 ~66℃
Storage Temperature:-40 ~85℃
Salt Fog:96 Hours
Function:Momentary
Electrical Configuration:NO/NC
兼容:430-413常开 2pin 座椅开关
替换件号,适用于:
兼容Bush Hog 50048610.
兼容Delta 6440-04、
兼容Dixie chopper 902602
兼容Dixon 539107523、
兼容Gravely 02754100
YESWITCH seat switches are easy to integrate into your application and ruggedly designed to last, equipped with self-cleaning contacts that extend switch life in tough environments where moisture and dirt are constant irritants.
The seat switch adopts a reset normally open design,which can ensure that every time you press the push button switch,it can automatically reset to the initial state,so as to facilitate your use.Moreover,this design can effectively prevent misoperation and ensure your safety.The seat push button switch types use a snap-in mounting design.This design makes installation and disassembly very easy and quick,and does not require any tools to complete.
The 3A 18VDC high current unsealed plunger seat switch has excellent performance to meet your needs for high-quality switches.The plunger switch biggest feature is high life and stability. After testing, the seat switch can withstand up to 75,000 cycles,and there are no problems during prolonged use. This makes it a very reliable option that can be used with confidence.
When a seated operator compresses the seat foam, the switch is actuated.Typical applications include construction equipment,material handling equipment, outdoor power equipment, forklifts,mowers,rental equipment,agricultural equipment,ATVs,UTVs and other applications where operator presence detection is necessary.
SPECIFICATIONS
Maximum Voltage:24 VDC 5A
Contact Resistance @ Max Current:83.3mΩ
Cycle Life @ Max Load:Inductive 10,000, Resistive 75,000
Ingress Protection:IP54
Operating Temperature:-28 ~66℃
Storage Temperature:-40 ~85℃
Salt Fog:96 Hours
Function:Momentary
Electrical Configuration:NO/NC
