YS06带灯按键开关
详细介绍
YS06系列带灯开关系列简介
带灯按键开关，小型按键开关，双色灯按键开关厂家，方形带灯按键开关，三色灯按键开关，多色灯按键开关供货商。

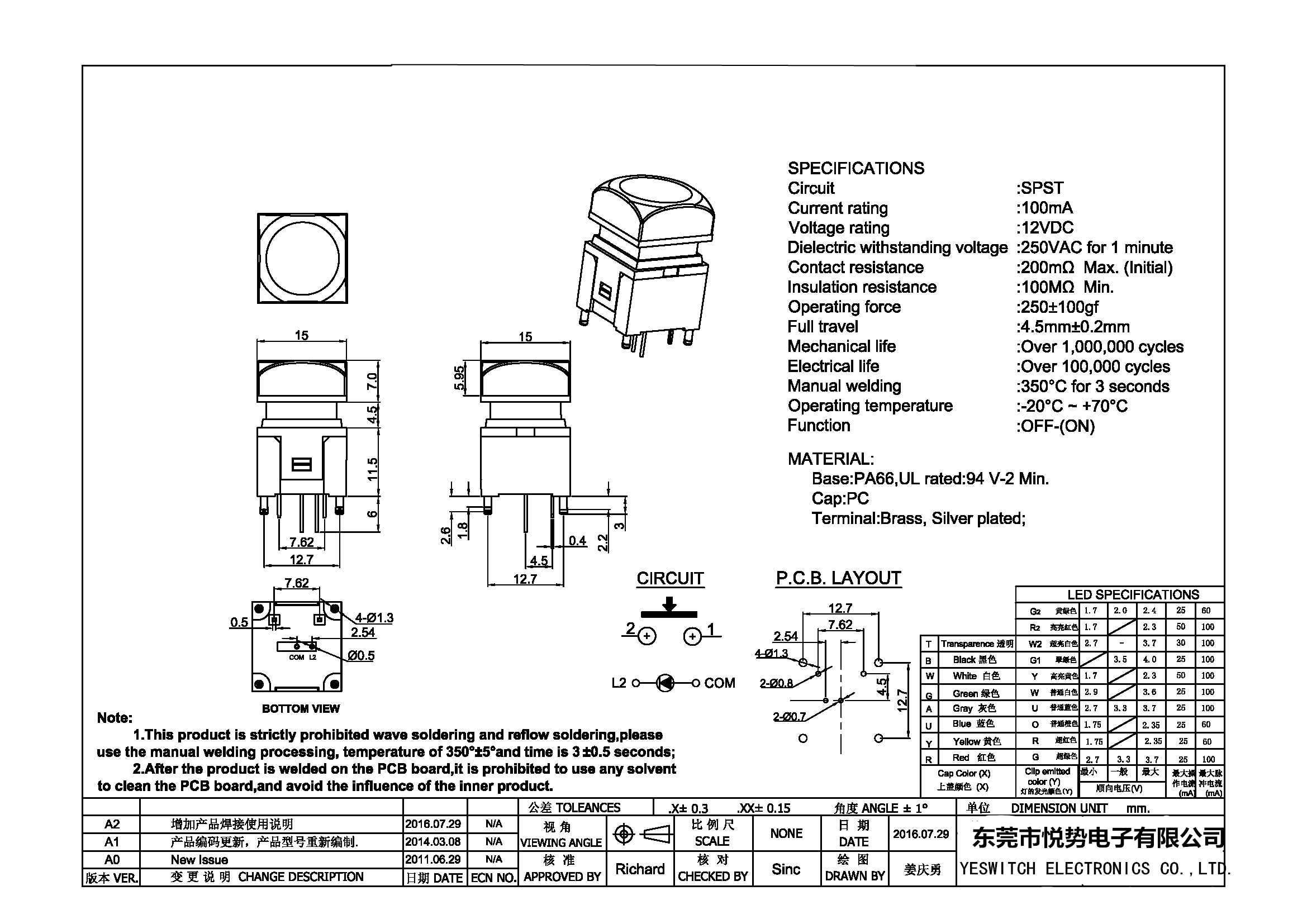

产品规格:
Circuit :SPST
Current rating :100mA
Voltage rating :12VDC
Dielectric withstanding voltage:250VAC for 1 minute
(between contacts)(between contacts &case)
Contact resistance :200mΩ Max.( Initial)
Insulation resistance :100MΩ Min.
Operating force :250±100gf
Full travel :4.5mm+0.2mm
Mechanical life :over 200000 cycles
Electrical life :Over 10000o0 cycles
Manual welding :350°C for 3 seconds
Operating temperature :-20°℃~+70℃
Function :OFF-(ON)
带灯按键开关应用领域:
Video processor 视频处理器
Security Monitoring Equipment安防监控设备
Teaching recording and broadcasting equipment教学录播设备
Consumer Electronics消费类电子
Audio equipment 音响设备
带灯按键开关，小型按键开关，双色灯按键开关厂家，方形带灯按键开关，三色灯按键开关，多色灯按键开关供货商。
产品规格:
Circuit :SPST
Current rating :100mA
Voltage rating :12VDC
Dielectric withstanding voltage:250VAC for 1 minute
(between contacts)(between contacts &case)
Contact resistance :200mΩ Max.( Initial)
Insulation resistance :100MΩ Min.
Operating force :250±100gf
Full travel :4.5mm+0.2mm
Mechanical life :over 200000 cycles
Electrical life :Over 10000o0 cycles
Manual welding :350°C for 3 seconds
Operating temperature :-20°℃~+70℃
Function :OFF-(ON)
带灯按键开关应用领域:
Video processor 视频处理器
Security Monitoring Equipment安防监控设备
Teaching recording and broadcasting equipment教学录播设备
Consumer Electronics消费类电子
Audio equipment 音响设备
