IP68 防水船型开关16A
详细介绍
尺寸：21*15mm
防护等级：IP68防尘防水
电流：16A
IP68防尘防水翘板开关，室外专用防水船型开关，IP68防尘防水等级船型开关
The IP68 Rocker switch was unique aesthetic designed. With ON-OFF or ON-ON function and quick connect terminals. It is built in with optional neon lamp, DC LED Lamp upon request.

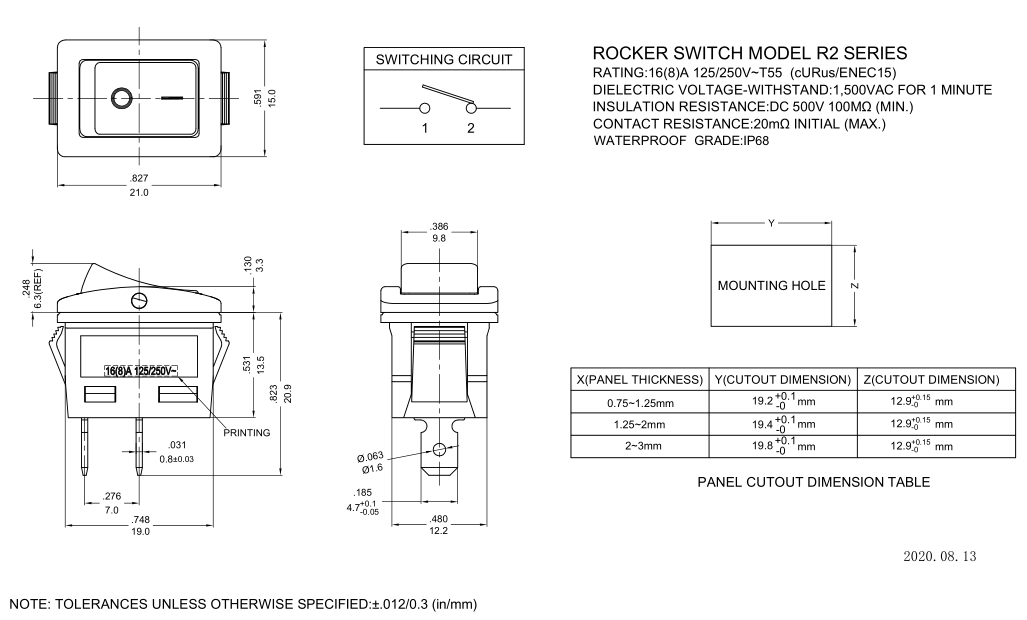

型号：MR-2 series rocker switch is patented Standard Mini Rocker Switch with IP68 Protection. The rocker switch is approved to UL, CUL & ENEC, up to 16(8)A. The 13x19mm standard mini Rocker Switches with IP68 protection level.

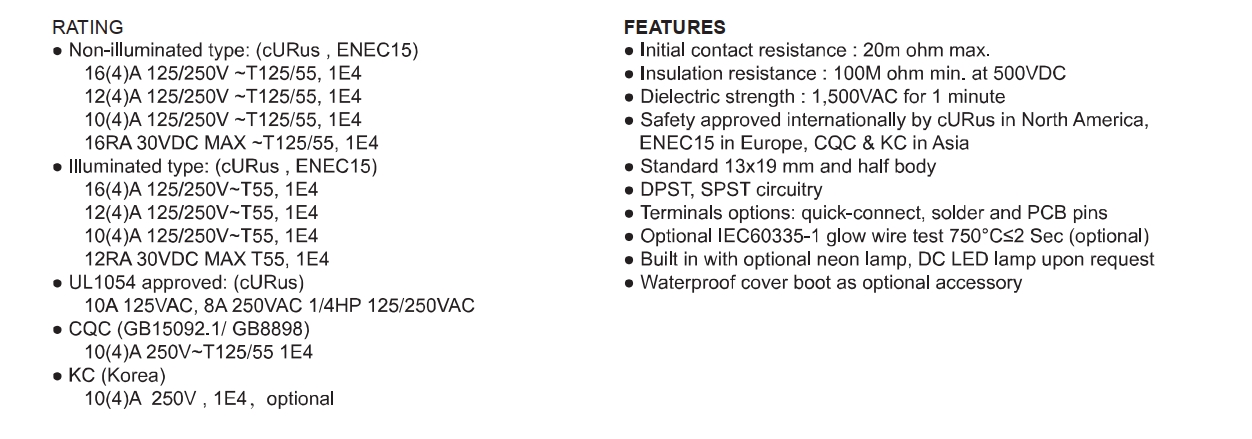

Specification:
· 10(4)A 125/250V~T55, (cURs,ENEC15)
· 16(8)A 125/250V~T55, (cURs,ENEC15)
· 16RA 30VDC T55 , IP68 (cURs,ENEC15)
· Initial contact resistance : 20m ohm (max.)
· Insulation resistance : 100M ohm (min,) at 500VDC
· Dielectric strength : 1,500VAC for 1 minute
· Electrical life : 10,000 cycles
· Switch for Class II appliances
· Base : Nylon 66, UL rated 94V-2 min
· Actuator : Nylon 66, UL rated 94V-2 min
· Spring : Piano wire
· Contact : Silver alloy
· Terminals: Silver plated Copper
防护等级：IP68防尘防水
电流：16A
IP68防尘防水翘板开关，室外专用防水船型开关，IP68防尘防水等级船型开关
The IP68 Rocker switch was unique aesthetic designed. With ON-OFF or ON-ON function and quick connect terminals. It is built in with optional neon lamp, DC LED Lamp upon request.
型号：MR-2 series rocker switch is patented Standard Mini Rocker Switch with IP68 Protection. The rocker switch is approved to UL, CUL & ENEC, up to 16(8)A. The 13x19mm standard mini Rocker Switches with IP68 protection level.
Specification:
· 10(4)A 125/250V~T55, (cURs,ENEC15)
· 16(8)A 125/250V~T55, (cURs,ENEC15)
· 16RA 30VDC T55 , IP68 (cURs,ENEC15)
· Initial contact resistance : 20m ohm (max.)
· Insulation resistance : 100M ohm (min,) at 500VDC
· Dielectric strength : 1,500VAC for 1 minute
· Electrical life : 10,000 cycles
· Switch for Class II appliances
· Base : Nylon 66, UL rated 94V-2 min
· Actuator : Nylon 66, UL rated 94V-2 min
· Spring : Piano wire
· Contact : Silver alloy
· Terminals: Silver plated Copper
