带钥匙的电源开关
详细介绍

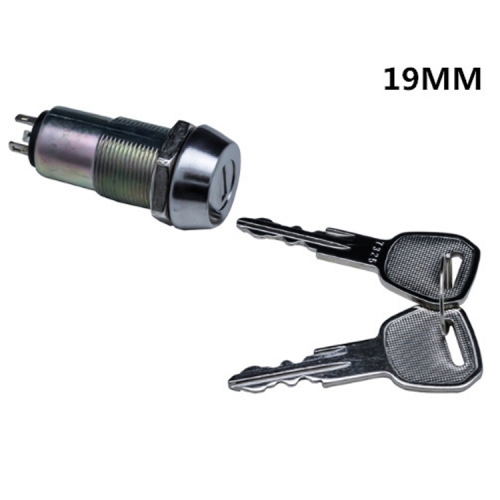

19mm钥匙开关，钥匙开关批发 SPST钥匙开关，SPDT电源锁
Introduction
No. S2361
Product Name S2361
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
Dust shutter mechanism.
5 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
Introduction
No. S2361
Product Name S2361
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
Dust shutter mechanism.
5 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
