带灯五向导航按键开关
详细介绍

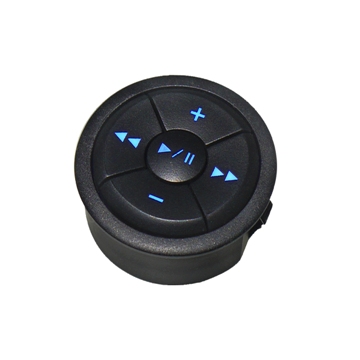

五向导航开关，NEW~ Navi switch, 5-way switch, Navigation Switch module Series SNA1
We provide Laser Marking service

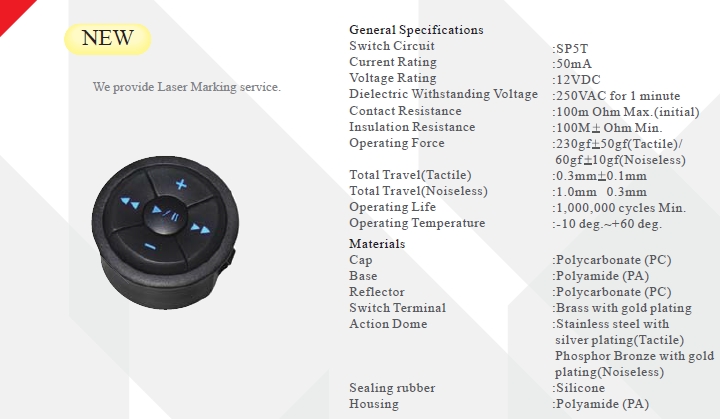

Switch rating:50mA,12VDC
Contact Resistance:100m Ohm Max.(initial)

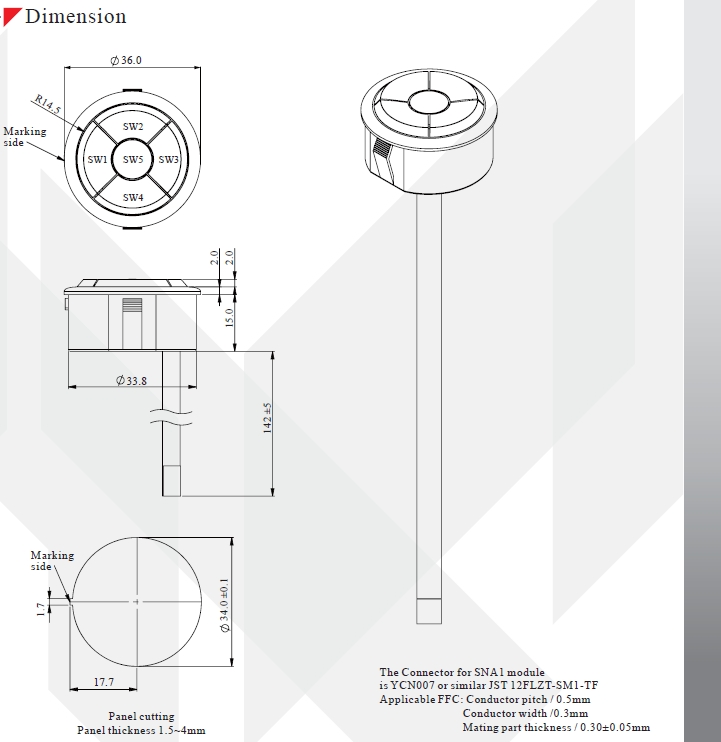

Silent/mute or tactile feeling. Panel mount snap-in type recommend panel cutting dimension 34mm only suit for 1U rack.

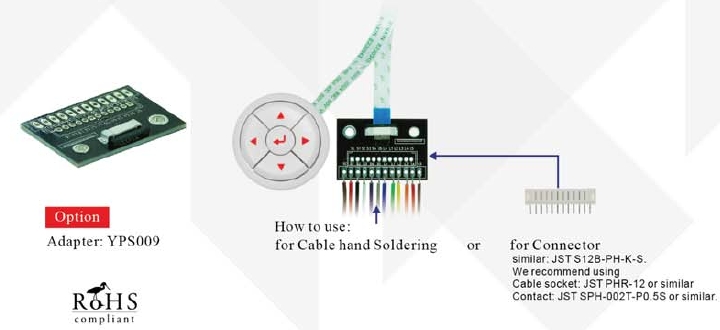

through FFC(Flexible Flat Cable) easy connect to your main board.

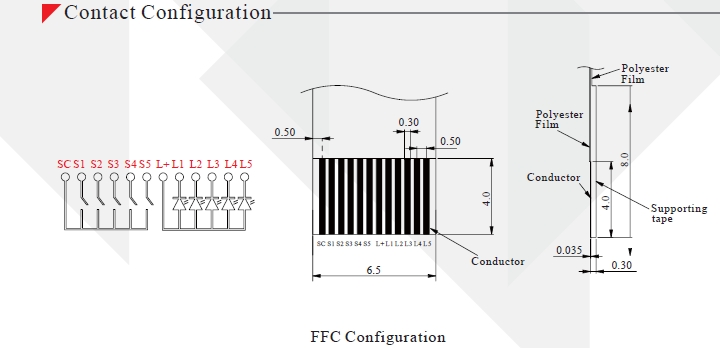

total 12 pins it with commond anode for LED it make you easy to control individual LED.
新產品~ SNA1 五向鍵、方向鍵、導航鍵，按鈕開關模組
可提供客製雷射雕刻服務
開關額定電流電壓:50mA,12VDC
34mm面版安裝孔徑，適合1U機架型面版安裝。
輕觸或滑順觸感可供選擇。
FFC軟性排線以連接器與PCB控制板快速連接。
內建LED背光可獨立控制。
