双回路电源锁，圆口钥匙电源锁
详细介绍

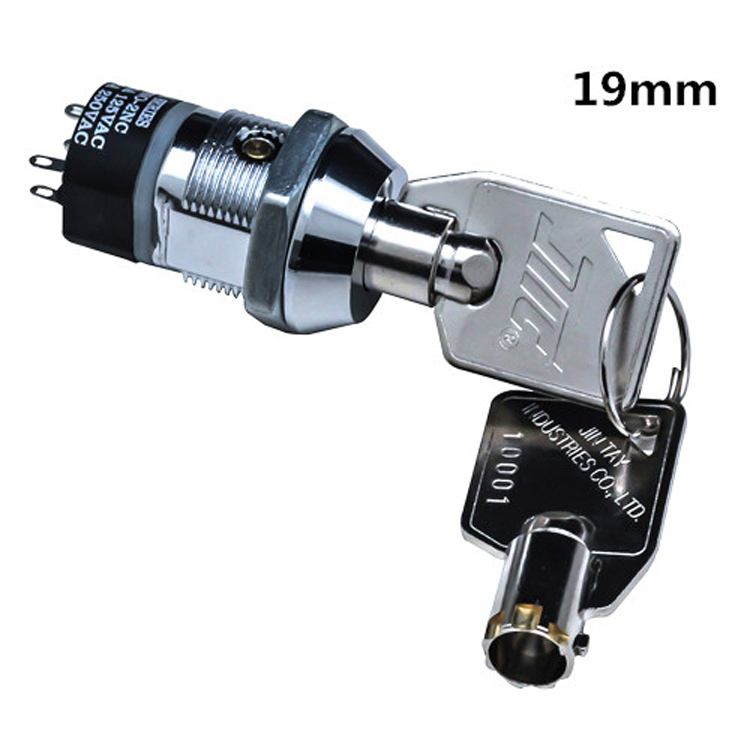

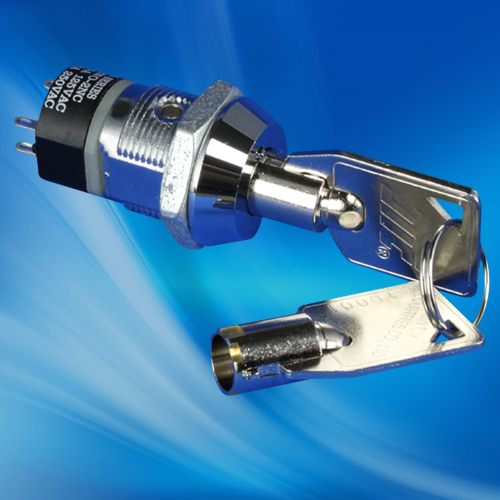

19mm钥匙开关，双回路钥匙开关，2档钥匙开关
产品型号：S206A S206B
产品型号：S206A S206B
产品名称：KEYLOCK SWITCH
产品说明：
锌合金锁壳，锁心，亮铬电镀
7个珠子
铁制铜管钥匙，镀镍
钥匙可单抽或者双抽
镀银接点及端子
S206A 4支端子，通电方式OFF-ON(2NO 2NC)
S206B 4支端子，通电方式ON-ON(1NO 1NC)
锁头固定方式为六角螺母或者插片
规格品为同号或每100PCS作1组钥匙组合
最多有10000组钥匙组合
Introduction
No. S206A S206B
Product Name S206A S206B
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
7 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S206A 2 position (off-on) 4 terminals. (2NO 2NC)
S206B 2 position (on-on) 4 terminals. (1NO 1NO)
Hex nut or speed clip mounted.
